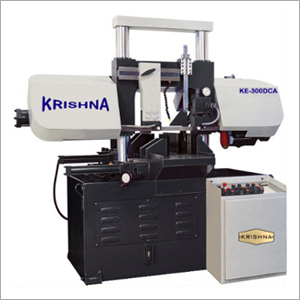

Double Column Fully Auto Band Saw

Double Column Fully Auto Band Saw
Double Column Fully Auto Band Saw
Product Code : 01
Product Description
The Double Column Fully Auto Band Saw that we offer is developed under the stern vigilance of our dexterous technocrats using optimum class components with the aid of contemporary methodology. It has a power driven wire brush for cleanings the blade. The offered machine is widely used to cut metals with maximum productivity. To fulfill the needs of our clients, this Double Column Fully Auto Band Saw is available with excellent efficiency. Furthermore, the automatic working height control system ensures proper height for comfortable operations.

Features:

  • Less vibration operation
  • Excellent speed
  • High productivity


STANDARD FEATURES

  • V-belt & Step Pulley.
  • One piece of Bi-metal Blade.
  • Shuttle type automatic feeding material system.
  • Automatic working height control system.
  • Hydraulic blade tension and breakage detector device.
  • PLC control system for all electric & hydraulic functions.
  • Roller bearings and carbide wear pad for blade guide system.
OPTIONAL EQUIPMENT
  • Auto chip conveyor system.
  • Infinitely variables speed control by A.C. Frequency drive.
  • Hydraulic bundle cutting attachment.
  • Roller stand.
  • Variable vise pressure for thin walled material.
  • Wire brush and Bi-metal blade.
  • One set of tools with tool box.
SPECIFICATIONS OF DOUBLE COLUMN FULLY AUTOMATIC DEVICE (DCA):





MODELS

KE-210 DCA

KE-300 DCA

KE-400 DCA

Cutting Capacity     in  mm Round & Square

210

300

400

Blade Dimensions    in mm

3760 x 27 x 0.9

4100 x 34 x 1.1

5450 x 41 x 1.3

Blade Speed      meter/min

20-35-45-55-75

20-35-45-55-75

20-35-45-55-75

Power Req.
KW / H.P
440 V AC, 50 Hz 3 Phase

Saw Drive



Hydraulic Drive

Coolant Pump

1.5 / 2 HP

2/ 3 HP

3.5 / 5 HP

1440 RPM

1440 RPM

1000 RPM

0.75 / 1 HP

0.75 / 1 HP

0.75 / 1 HP

1440 RPM

1440 RPM

1440 RPM

0.15 HP

0.15 HP

0.15 HP



2800 RPM

2800 RPM

2800 RPM

Hydraulic Tank     in letters

80

80

80

Coolant Tank        in letters

60

60

80

Approx Dim   in FT LxWxH

7.5 x 8.10x 4.25

8.10x 9.50 x 4.25

8.10 x 11.3 x 5.25

Approx  Weight             KG

1960

2300

2650

Bundle Cutting               W

150 to 210

150 to 300

150 to 421

(Optional)              in mm H

30 to 150

30 to 150

30 to 220

Shuttle Bar          one piece

350

350

350



Note

Bi-metal Bandsaw Blade should be selected as per the geometry and grade of the material. Please consult Blade manufacturer-  or contact us for long life of Bi-metal Blade.


Keeping in step with technological strides, we make improvement in the design of our products. Hence the products supplied may have features different from those described in this Technical Specification.


You can get our old brand name Laxsons Bandsaw machines' spare parts.
