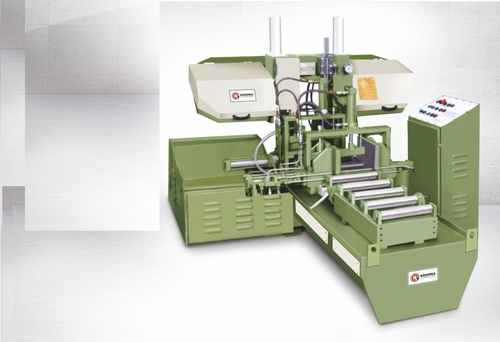

High Speed Bandsaw Machine

High Speed Bandsaw Machine
High Speed Bandsaw Machine
Product Code : 03
Brand Name : KRISHNA ENGINEERING WORKS
Product Description

We are offering the finest range of High Speed Band saw Machine to the clients. The offered machine is equipped with adjustable cutting feed control system. It has a chip removing wire brush assembly that provides continue cleaning. It can quickly and smoothly cut various types of materials like mild steel; alloy steel, stainless steel, brass, copper and aluminum. In addition, the offered High Speed Band saw Machine is tested on various quality parameters to ensure its flawlessness.

Features:

  • Excellent performance
  • Fast and smooth cutting
  • Optimum working capacity


Salient Features of HS Models

  • Back view of machine and only KEW provide you cover in  upper side body
  • Chip tray for easy cleaning under side body
  • Bi-metal blade that make long life of blades & Blade guide
  • Design is very compact and perfect for good support of blade.
STANDARD EQUIPMENT
  • Economic in power consumption.
  • Special swing cut facility for fast cutting.
  • Chip removal wire brush.
  • One piece of Carbon steel blade.
  • One piece of Bi-metal blade in KE-HS models.
  • Optional swivel vice for 15* / 30* / 35* / 45*(degree) angular cutting.
  • Minimum material wastage compared to lesser blade thickness.
  • Blade guide is supported by two carbide tips and ten rollers bearings for better grip.
  • Specially designed hydraulic feed control system in KE-HS models.
  • Smoother and very fast cutting in our KE-HS models.
  • Each part of the machine is being checked precisely to avoid any complaints and for customers satisfaction.
OPTIONAL EQUIPMENT
  • Roller stand.
  • Wire brush in KE-HS models.
  • Bi-metal Bandsaw blades.
  • One set of tools with tool box.
  • Carbon Steel blades.
  • Swivel vice for Angular cutting.

TECHNICAL SPECIFICATIONS OF HORIZONTAL BANDSAW MACHINES:


MODELS

KE-1

KE-1 HS

KE-2 HS

KE-3 HS

KE-4 HS

KE-5 HS

KE-1 CS

KE-6 HS

Cutting Capacity in  mm Round & Square

175

175

300

350

400

450

175

250

Drive motor

0.5 HP
1440 RPM

1 HP
1440
RPM

2HP
1000 RPM

2HP
1000 RPM

2HP
1000
RPM

2HP
1000 RPM

0.5 HP

1440 RPM

1.5HP
1000 RPM

Coolant Pump

0.15
HP 440  Volts

0.15 HP

440 Volts

0.15HP
440 Volts

0.15HP
440 Volts

0.15HP
440
Volts

0.15HP
440 Volts

0.15HP
440 Volts

0.15HP
440 Volts

Blade Dimensions in mm

2540 x 20 x 0.9

3000 x 27 x 0.9

3810 x 27 x 0.9

4100 x 27 x 0.9

4420 x 34 x 1.1

4570 x 41 x 1.3

2540 x 20 x 0.9

3760 x 27 x 0.9

Blade Speed   meter/min

25-30-40

20-35-55-75

20-35-55-75

20-35-55-75

20-35-55-75

20-35-55-75

20-35-55-75

20-35-55-75

Approx Dim in mm LxWxH

1500x
570x870

1630x
570x870

2400x
830x1050

2550x
830x1050

2650x
830x1215

2750x
830x1225

1500x
570x870

2000x
750x950

Net Weight               KG

272

350

770

820

900

990

285

630

Packed  Weight        KG

350

410

850

920

990

1080

370

710


NOTE

Bi-metal Bandsaw Blade should be selected as per the geometry and grade of the material. Please consult Blade manufacturer- or contact us for long life of Bi-metal Blade.

Keeping in step with technological strides, we make improvement in the design of our products. Hence the products supplied may have features different from those described in this Technical Specification.

You can get our old brand name Laxsons Bandsaw machine spare parts.
