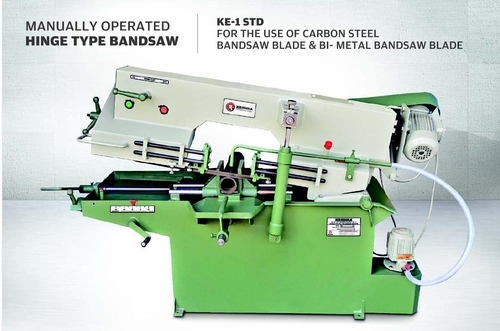

Manually Operated Hinge Type Bandsaw Machine

Manually Operated Hinge Type Bandsaw Machine
Manually Operated Hinge Type Bandsaw Machine
Product Code : KE-1 STD
Brand Name : KRISHNA ENGINEERING WORKS
Trade Information
  • Minimum Order Quantity
  • 1
  • Payment Terms
  • Cash Against Delivery (CAD), Cheque, Letter of Credit at Sight (Sight L/C), Others
  • Sample Available
  • Yes
  • Sample Policy
  • Free samples are available
  • Main Export Market(s)
  • Asia, South America, Western Europe, Middle East, Africa
  • Main Domestic Market
  • All India
Product Description

We are offering the finest range of Manually Operated Hinge Type Bandsaw Machine  to the clients. The offered machine is precision engineered so as to meet the modern demands of several industries. Due to its smooth & swift functioning ability, it is able to operate in a spontaneous way which aids the worker in consistently carrying his work with ultimate efficiency. Further, the offered Manually Operated Hinge Type Bandsaw Machine is widely demanded in engineering industries for various cutting applications.

Features:

  • High productivity
  • Excellent functionality
  • High efficiency

STANDARD FEATURES

¶ High Productivity with low rate saves your idle time

¶ Improved heavy duty oil field gear box (synthetic oil)

¶ Specially designed hydraulic feed control jumper system

¶ Chip collecting trey for keeping fresh coolant water (In all models)

¶ Chip removing wire brush for continues clean the blade (Only in KE-1 HS & KE-6 HS odels)

¶ Superb carbide wear pad blade guide system



OPTIONAL ACCESSORIES

¶ Chip removing wire brush

¶ Single phase is available

¶ Swivel vice assembly for angular cutting

¶ Job roller stand

¶ Bi-metal bandsaw blades

¶ Infinitely variable speed control by A.C. frequency drive

¶ Semi auto device for auto arm lifting in cutting position & Vice Clamping / Declamping by Hydraulic System (In HS models)



TECHNICAL SPECIFICATION

MODELS KE-1STD KE-1 HS KE-2 HS KE-3 HS KE-4 HS KE-5 HS KE-1 CS 150 KE-6 HS 250 KE-7HS 500

Capacity Round -:150 mm 200 mm 300 mm 350 mm 400 mm 450 mm 150 mm (NEW) 250 mm (NEW) 500 mm (NEW)

Capacity Square -:150 mm 175 mm 275 mm 325 mm 375 mm 425 mm 150 mm 225 mm 475 mm

Drive Motor -: 0.5 HP 1 HP 2 HP 2 HP 2 HP 2 HP 0.5 HP 1.5 HP 3 HP 440v AC 3 phase -:  1440 RPM 1440 RPM 1000 RPM 1000 RPM 1000 RPM 1000 RPM 1440 RPM 1440 RPM 1000 RPM

Coolant Pump -: 0.15 HP 0.15 HP 0.15 HP 0.15 HP 0.15 HP 0.25 HP 0.15 HP 0.15 HP 0.25 HP 440v AC 3 phase- 440 Volts 440 Volts 440 Volts 440 Volts 440 Volts 440 Volts 440 Volts 440 Volts 440 Volts

Blade Dim -: 2540 x 20 3000 x 27 3760 x 34 4100 x 34 4420 x 34 4570 x 34 2515 x 27 3300 x 27 4600 x 34 in mm x 0.9 x 0.9 x 1.1 x 1.1 x 1.1 x 1.1 x 0.9 x 0.9 x 1.1

Blade Speed -: 25-30-40 20-35-55-75 20-35-55-75 20-35-55-75 20-35-55-75 20-35-55-75 20-35-55-75 20-35-55-75 20-35-55-75 m.min

Approx Dim -:1500 x 570 1630 x 750 2400 x 930 2550 x 930 2650 x 930 2750 x 930 1500 x 570 2000 x 750 3000 x 930 in mm LxWxH x 870 x 870 x 1050 x 1050 x 1215 x 1225 x 870 x 950 x 1400

Net Weight Aprx. 250 KG 320 KG 770 KG 820 KG 900 KG 990 KG 270 KG 390 KG 1100 KG
