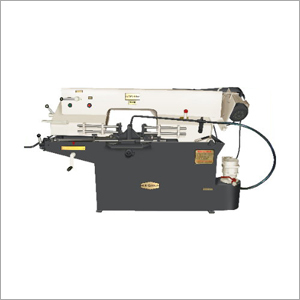

Standard Size Band Saw Machine

Standard Size Band Saw Machine
Standard Size Band Saw Machine
Product Code : 04
Brand Name : KRISHNA ENGINEERING WORKS
Product Description
Our clients can avail the finest range of Standard Size Band Saw Machine from us. Under the stern surveillance of our diligent technocrats, this machine is manufactured using optimum grade components and sophisticated techniques. The offered machine is widely used to cut various types of metal and steel materials. For ensuring its excellent functionality, our quality auditors duly inspect this machine on several practical parameters of quality. The Standard Size Band Saw Machine can be customized as per the clients' demands.

Features:

  • Optimum performance
  • High operational fluency
  • Low power consumption


Salient Features of STD Models

  • Adjustable cutting pressures handle for cutting pressure adjustment.

  • Successful blade guide system which is supported by carbide tips and roller bearings.

  • Swing cut operation for fast cutting.

STANDARD EQUIPMENT

  • Economic in power consumption.

  • Special swing cut facility for fast cutting.

  • Chip removal wire brush.

  • One piece of Carbon steel blade.

  • One piece of Bi-metal blade in KE-HS models.

  • Optional swivel vice for 15* / 30* / 35* / 45*(degree) angular cutting.

  • Minimum material wastage compared to lesser blade thickness.

  • Blade guide is supported by two carbide tips and ten rollers bearings for better grip.

  • Specially designed hydraulic feed control system in KE-HS models.

  • Smoother and very fast cutting in our KE-HS models.

  • Each part of the machine is being checked precisely to avoid any complaints and for  customers satisfaction.

OPTIONAL EQUIPMENT

  • Roller stand.

  • Wire brush in KE-HS models.

  • Bi-metal Bandsaw blades.

  • One set of tools with tool box.

  • Carbon Steel blades.

  • Swivel vice for Angular cutting.

TECHINICAL SPECIFICATION OF HORIZONTAL BANDSAW MACHINES:

MODELS

KE-1

KE-1 HS

KE-2 HS

KE-3 HS

KE-4 HS

KE-5 HS

KE-1 CS

KE-6 HS

Cutting Capacity in  mm Round & Square

175

175

300

350

400

450

175

250

Drive motor

0.5 HP
1440 RPM

1 HP
1440
RPM

2HP
1000 RPM

2HP
1000 RPM

2HP
1000
RPM

2HP
1000 RPM

0.5 HP

1440 RPM

1.5HP
1000 RPM

Coolant Pump

0.15
HP 440  Volts

0.15 HP

440 Volts

0.15HP
440 Volts

0.15HP
440 Volts

0.15HP
440
Volts

0.15HP
440 Volts

0.15HP
440 Volts

0.15HP
440 Volts

Blade Dimensions in mm

2540 x 20 x 0.9

3000 x 27 x 0.9

3810 x 27 x 0.9

4100 x 27 x 0.9

4420 x 34 x 1.1

4570 x 41 x 1.3

2540 x 20 x 0.9

3760 x 27 x 0.9

Blade Speed   meter/min

25-30-40

20-35-55-75

20-35-55-75

20-35-55-75

20-35-55-75

20-35-55-75

20-35-55-75

20-35-55-75

Approx Dim in mm LxWxH

1500x
570x870

1630x
570x870

2400x
830x1050

2550x
830x1050

2650x
830x1215

2750x
830x1225

1500x
570x870

2000x
750x950

Net Weight               KG

272

350

770

820

900

990

285

630

Packed  Weight        KG

350

410

850

920

990

1080

370

710


Note

Bi-metal Bandsaw Blade should be selected as per the geometry and grade of the material. Please consult Blade manufacturer-  or contact us for long life of Bi-metal Blade.


Keeping in step with technological strides, we make improvement in The design of our products. Hence the products supplied may have features different from  those described in this Technical Specification.


You can get our old brand name Å“Laxsons Bandsaw machine spare parts.
